Products
AISI 316/316L/316H,TP316/316L/316H
- Products Category: > STAINLESS STEEL SEAMLESS PIPE&TUBE
AISI 316， TP316
AISI 316H, TP316H
AISI 316L, TP316L, S31600，1.4401，1.4404，S31603，1.4435
316/316H/316L is one of the most common stainless steel on the market. It is an austenitic grade with the addtional of 2-3% molybdenum wich futher improves corrosion resistance. It is often referred to as a marine grade stainless steel because of its effective resistance to chloride corrossion in comparison to other stainelss steel grade.
The material has superior welding and forming qualities,grade 316 will require post-weld annealing to promote max. corrosion resistance, though this is not necessa if type 316L is used.
316/316L/316H Stainless Steel Pipe and Tubes Product Range
316 Stainless Steel Pipe and Tubes Specifications: ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
316 Stainless Steel Pipe and Tubes Sizes (Seamless): 1/8" NB - 30"NB
316 Stainless Steel Pipe and Tubes Sizes (ERW): 1/2"NB - 24"NB
316 Stainless Steel Pipe and Tubes Sizes (EFW): 6"NB - 100"NB
316/316L/316H Stainless Steel Pipe and Tubes Wall Thickness available:
Schedule 5S - Schedule XXS (heavier on request)
316/316L/316H Stainless Steel Pipe and Tubes Other Materials Testing:
NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc.
316/316L/316H Stainless Steel Pipe and Tubes Dimensions:
All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME and API etc.
Type 316 Stainless Steel has excellent welding and deep drawing characteristics - it is easy to fabricate, easy to clean and aesthetically pleasing to the eye.

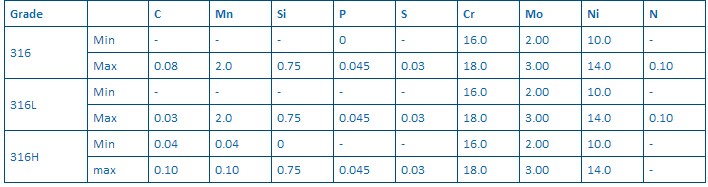

316/316H/316L Stainless Steel Pipe and Tubes Composition
Typical compositional ranges for grade 304 stainless steels are given below:

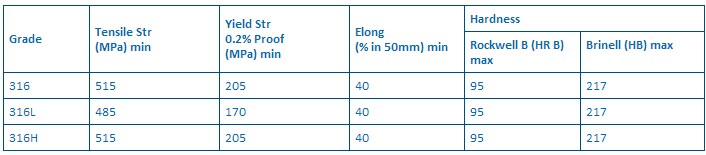

316/316L/316H Stainless Steel Pipe and Tubes Mechanical Properties
Typical Mechanical properties for grade 304 stainless steels are given below:

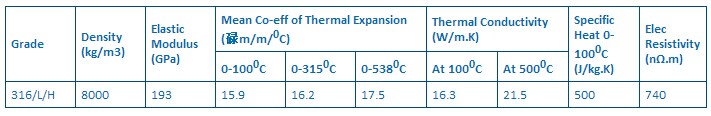

316/316L/316H Stainless Steel Pipe and Tubes Physical Properties
Typical Physical properties for grade 316 stainless steels in the Annealing condition are given below:

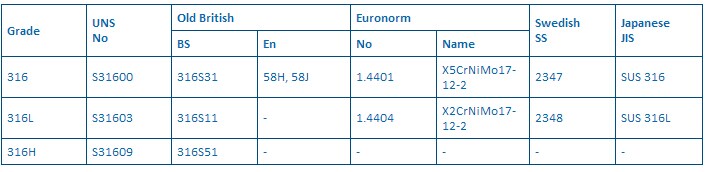

316/316L/316H Stainless Steel Pipe and Tubes Grade Specification
Approximate grade comparisons for 316/316L/316H stainless steels are given
316/316L/316H Stainless Steel Pipe and Tubes Corrosion Resistance
Excellent in a wide range of atmospheric environments and many corrosive media. Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 60 Deg-C. Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 60 Deg-C.
316/316L/316H Stainless Steel Pipe and Tubes Heat Treatment
Solution Treatment (Annealing) Heat to 1010-1120 Deg-C and cool rapidly. These grades cannot be hardened by thermal treatment.
316/316L/316H Stainless Steel Pipe and Tubes Packing
304L Stainless steel seamless pipes and tubes is sleeved into plastic bag individually, pieces wrapped with water-proof material ,bundled with nylon rope.Clear labes are tagged on the outside of the package for easy identification of the quantity and products I.D. Great Care is taken during operation and transportaion.
SS316/316H/316L ASTM A312 Seamless pipe packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.
The Types of the Packaging: Bundles // Wooden Cases//Crates// Special crates for U-Bend Tubes // As per clients requirement
We Export Stainless Steel Seamless Pipe to : Saudi Arabia, Qatar, Oman, Iran, Iraq, Bahrain, Kuwait, United Arab Emirates, Dubai, Turkey, Egypt, Yemen, Israel, Jordan United Kingdom, United States of America, Mexico, Brazil, Chile, Argentina, Spain, Germany, Netherland, Italy, Europe, Albania, Ukraine, Russia, Japan, China, Sri Lanka, Pakistan, Bangladesh, Nepal, Bhutan, Maldives, Singapore, Malaysia, Thailand, South Korea, Vietnam, Indonesia, Australia, New Zealand, Alaska, Tehran, Riyadh, Jubail, Dammam, Jeddah, Houston, Doha, Musqat, Karachi, Colombo, Jakarta, Bangkok, Basra, Abadan, Bandar Abbas, Sharjah, Morocco, Istanbul, Kobhar, Mecca, Madina, Al Madina, Makkah, Mesaieed, Dukhan, Ras Laffan, Sohar, Manama, Aqaba, Port of Aden, Shuwaikh, Yanbu, Jubail
