AISI 310/310S/310H,1.4845
- Products Category: > STAINLESS STEEL SEAMLESS PIPE&TUBE
AISI 310， TP310,
AISI 310, TP310S, 1.4845
TP310 combining excellent high temperature properties with good ductilit and weld ability , it is designed for high temperature service. It resists oxideation in continuours service at temperature up to 11500 Deg-C, Provided reducing sulphur gaseds are not present. It is also used for inermittent service at temperatures up to 1040 Deg-C.
TP310S ( UNS S31008) is used when the application environment involves moist corrodents in a temperature range lower than that which is normally considere high temperature service. The Lower carbon content of 310s does reduce its high temperature strenght compared to 310.
310/310S Stainless Steel Pipe and Tubes Product Range
310/310S Stainless Steel Pipe and Tubes Specifications: ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
310/310s Stainless Steel Pipe and Tubes Sizes (Seamless): 1/8" NB - 30"NB
310/310S Stainless Steel Pipe and Tubes Sizes (ERW): 1/2"NB - 24"NB
310/310S Stainless Steel Pipe and Tubes Sizes (EFW): 6"NB - 100"NB
310/310S Stainless Steel Pipe and Tubes Wall Thickness available:
Schedule 5S - Schedule XXS (heavier on request)
310/310S Stainless Steel Pipe and Tubes Other Materials Testing:
NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc.
310/310S Stainless Steel Pipe and Tubes Dimensions:
All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME and API etc.

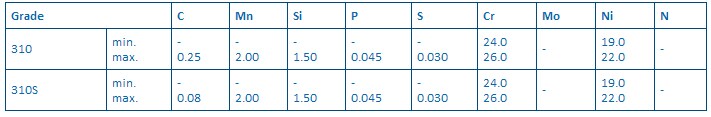

310/310S Stainless Steel Pipe and Tubes Composition
Typical compositional ranges for grade 310/310S stainless steels are given below:

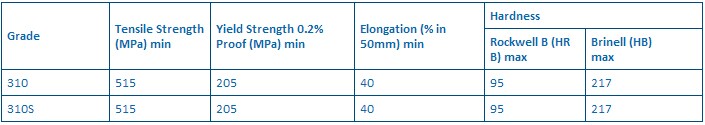

310/310S Stainless Steel Pipe and Tubes Mechanical Properties
Typical Mechanical properties for grade 310/310S stainless steels are given below:

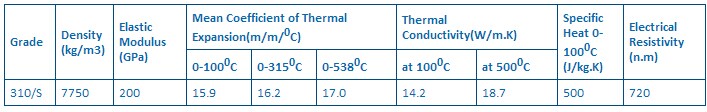

310/310S Stainless Steel Pipe and Tubes Physical Properties
Typical Physical properties for grade 310/310s stainless steels in the Annealing condition are given below:
.jpg)

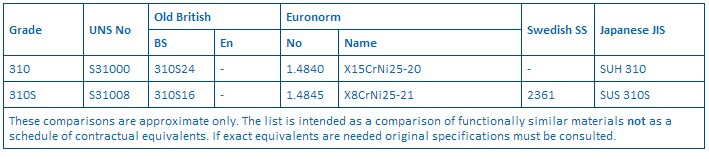

310/310S Stainless Steel Pipe and Tubes Grade Specification
Approximate grade comparisons for 310/310S stainless steels are given
321/321H Stainless Steel Pipe and Tubes Heat Treatment
Solution Treatment (Annealing) Heat to 1040-1150 Deg-C and cool rapidly for maximum corrosion resistance.
This treatment is also recommended to restore ductility after reach 1000 hours of service above 650 Deg-C, due to long term precipitation of brittle sigma phase .
310/310S Stainless Steel Pipe and Tubes Packing
310/310s Stainless steel seamless pipes and tubes is sleeved into plastic bag individually, pieces wrapped with water-proof material ,bundled with nylon rope.Clear labes are tagged on the outside of the package for easy identification of the quantity and products I.D. Great Care is taken during operation and transportaion.
SS310/310s ASTM A312 Seamless pipe packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.
The Types of the Packaging: Bundles // Wooden Cases//Crates// Special crates for U-Bend Tubes // As per clients requirement
